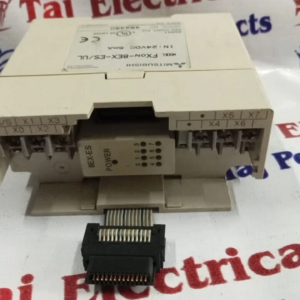

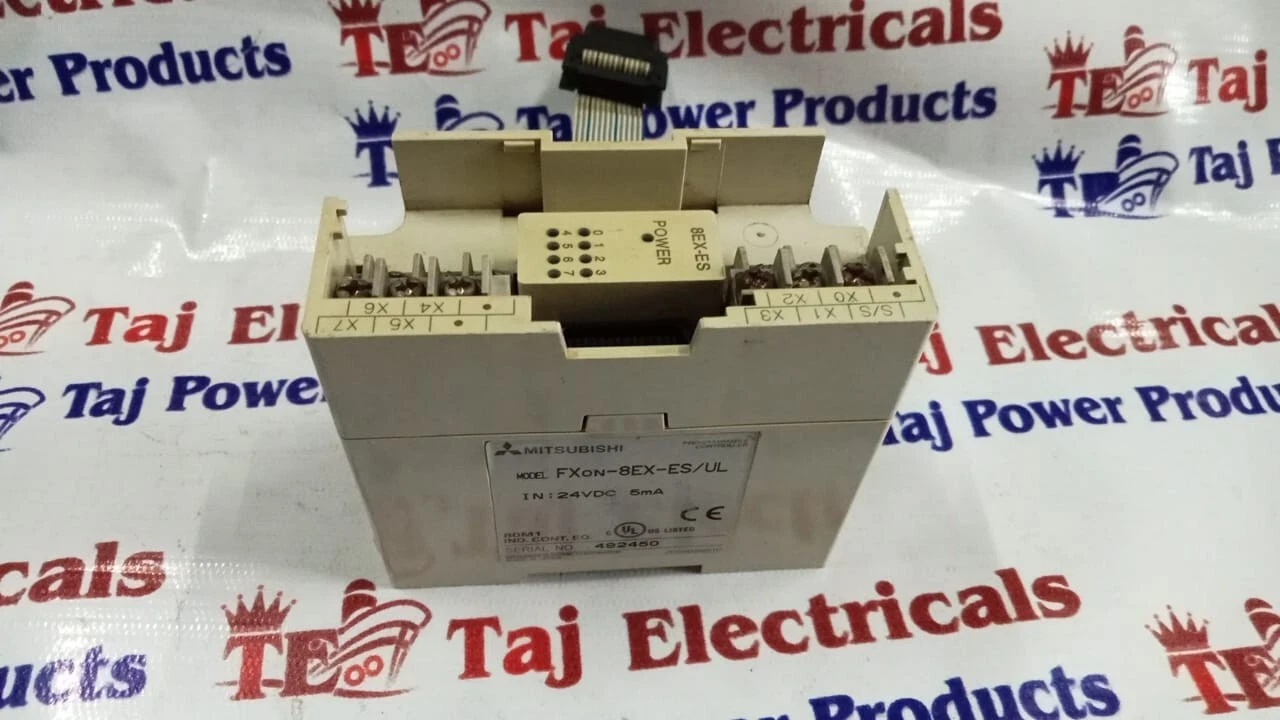

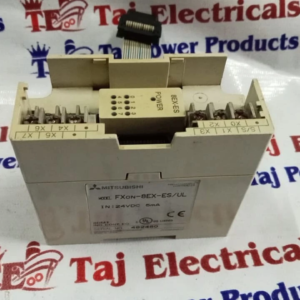

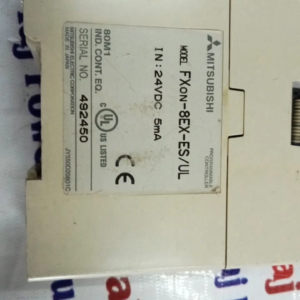

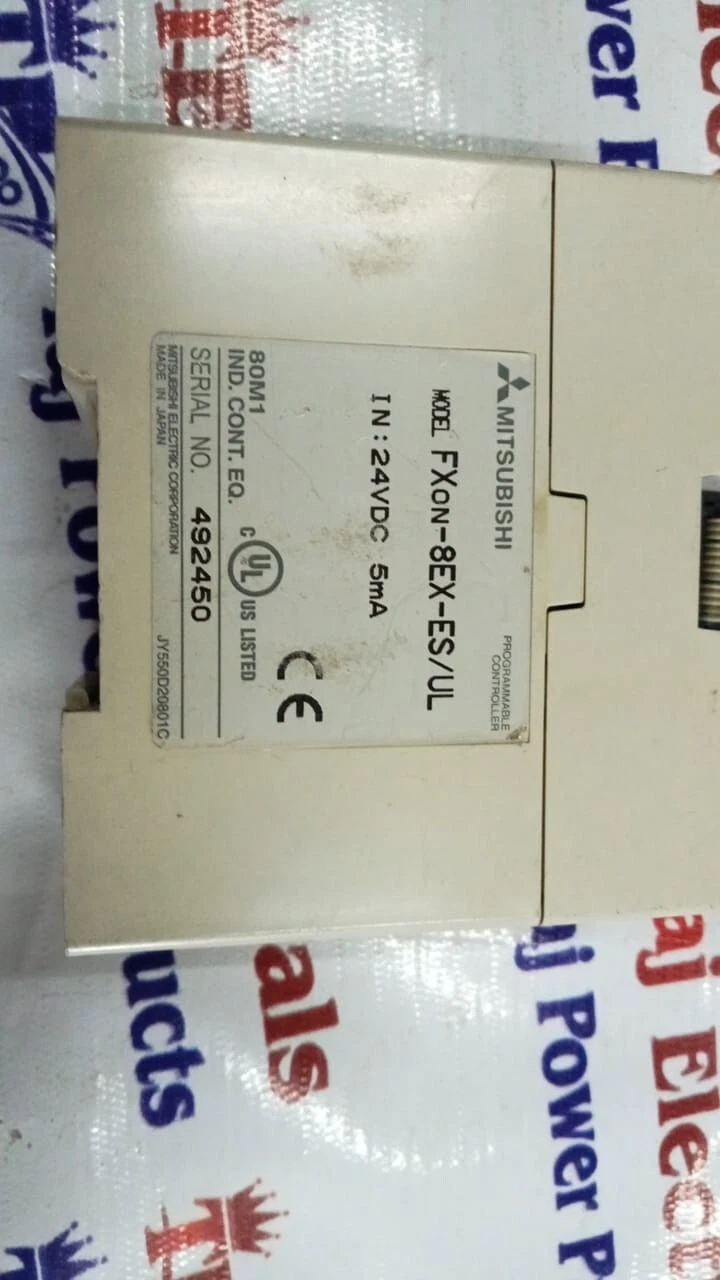

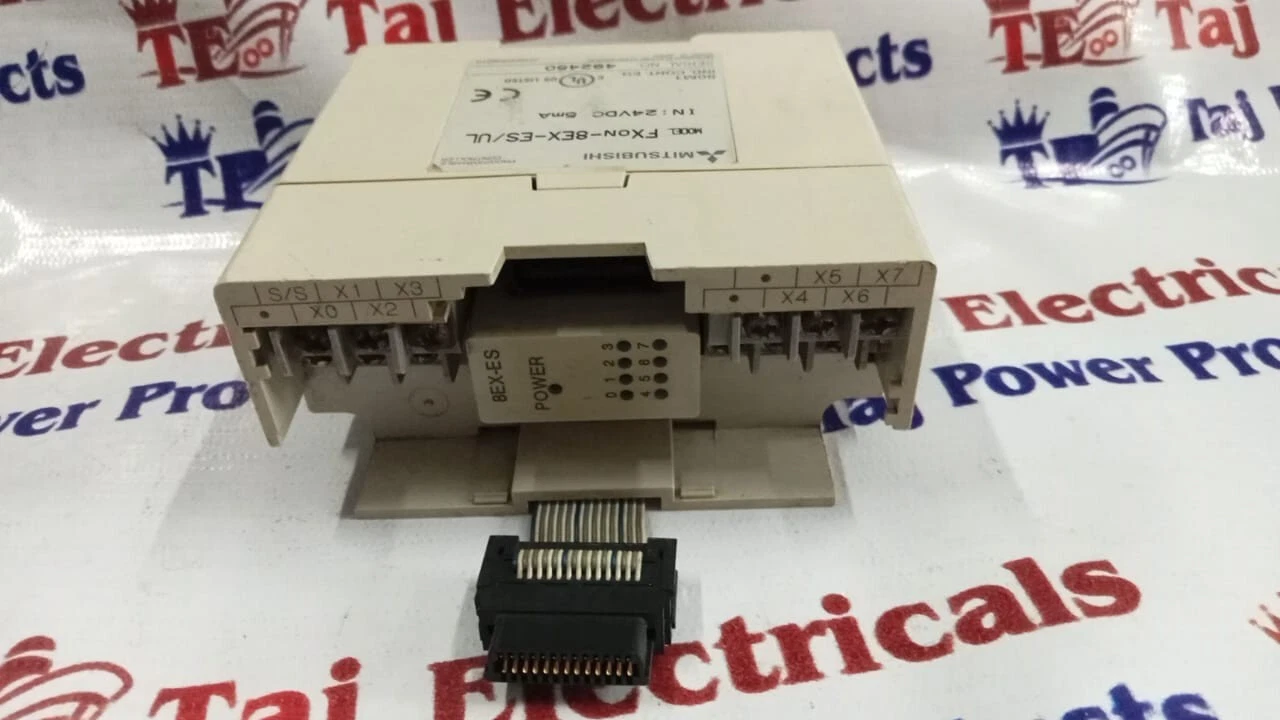

MITSUBISHI FX0N-8EX-ES/UL PLC SUPERIOR QUALITY PRODUCT SHIPPING WORLDWIDE
The FX0N series modular extension units are available with 16 input/output points. It is possible to choose between relay and transistor output type.
Special features:

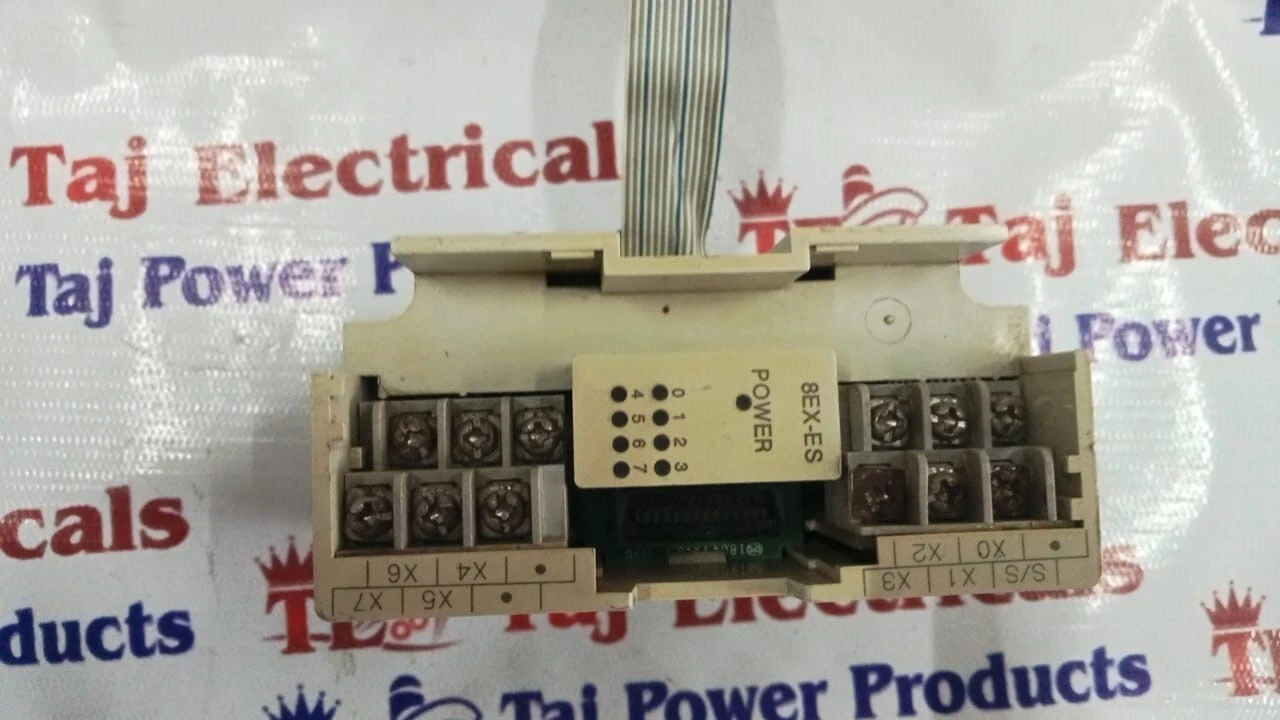

- LEDs for indicating the input and output status
- MELSEC FX2N series compatible
- Especially compact design
- Vertical mounted (at 8 I/Os) or horizontally mounted (at 16 I/Os) terminal blocks with a cable guide to the upper or lower side
Mitsubishi Melsec FX0N-8EX-ES/UL unit technical details:
- General specification:
- Conforms to FX0N base units (CPU units)
- Power supply:
- All modular extension units are supplied by the base unit
- Integrated inputs:
- 8x NPN/PNP inputs 24VDC / 5mA
- Min current for logical 1:
- 3.5mA
- Max current for logical 0:
- 1.5mA
- Response time:
- For all base units of the Melsec FX2N series values:
- 10ms
- For all base units of the Melsec FX2N series values:
- Mounting:
- DIN rail
- 2x4mm holes at the corners
There might not be enough hole blanking plates for all units. Most complete units are sold first.
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
Mitsubishi Fx0N-8Ex-Es/Ul Plc Superior Quality Product
₹ 4,277.50
Estimated delivery:5 days
MITSUBISHI FX0N-8EX-ES/UL PLC SUPERIOR QUALITY PRODUCT SHIPPING WORLDWIDE
The FX0N series modular extension units are available with 16 input/output points. It is possible to choose between relay and transistor output type.
Special features:
- LEDs for indicating the input and output status
- MELSEC FX2N series compatible
- Especially compact design
- Vertical mounted (at 8 I/Os) or horizontally mounted (at 16 I/Os) terminal blocks with a cable guide to the upper or lower side
Mitsubishi Melsec FX0N-8EX-ES/UL unit technical details:
- General specification:
- Conforms to FX0N base units (CPU units)
- Power supply:
- All modular extension units are supplied by the base unit
- Integrated inputs:
- 8x NPN/PNP inputs 24VDC / 5mA
- Min current for logical 1:
- 3.5mA
- Max current for logical 0:
- 1.5mA
- Response time:
- For all base units of the Melsec FX2N series values:
- 10ms
- For all base units of the Melsec FX2N series values:
- Mounting:
- DIN rail
- 2x4mm holes at the corners
There might not be enough hole blanking plates for all units. Most complete units are sold first.
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
